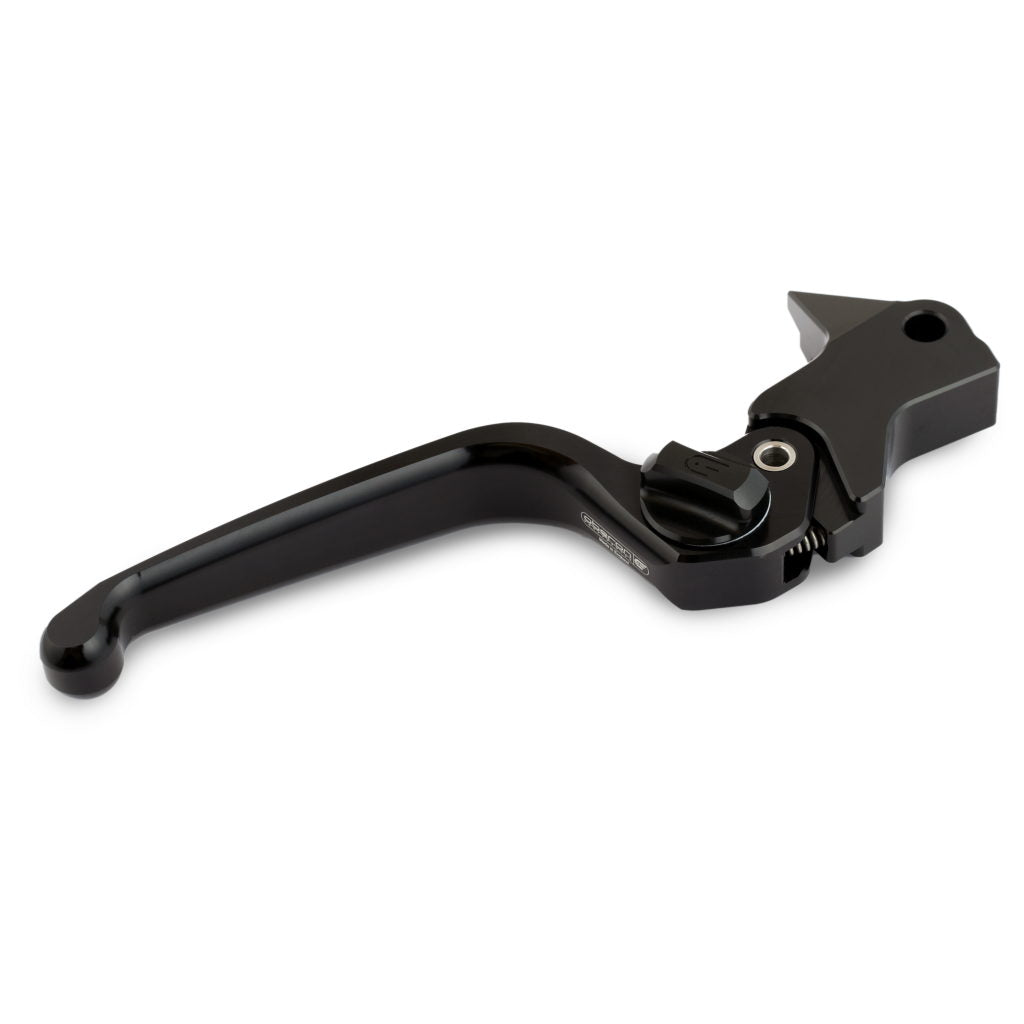

LEV-B100 Adjustable Brake Lever for Harley Davidson

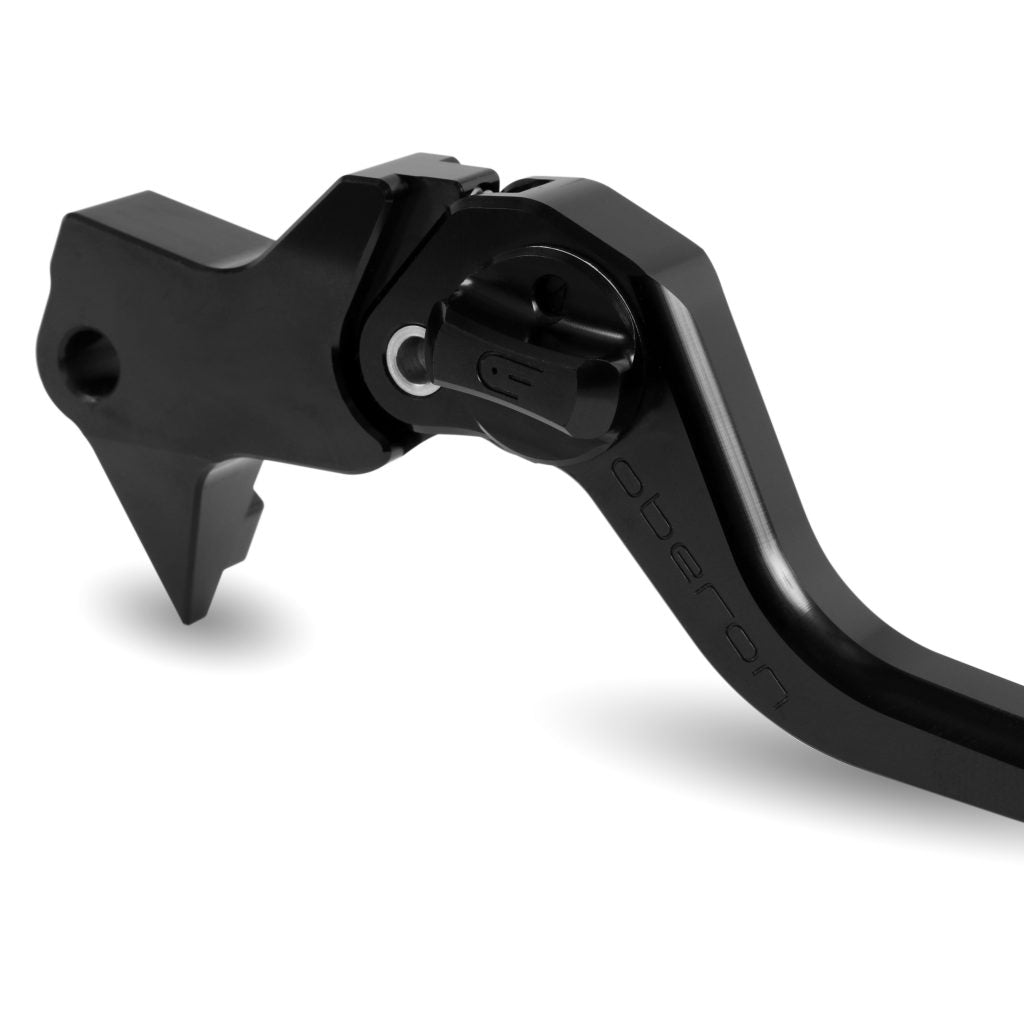

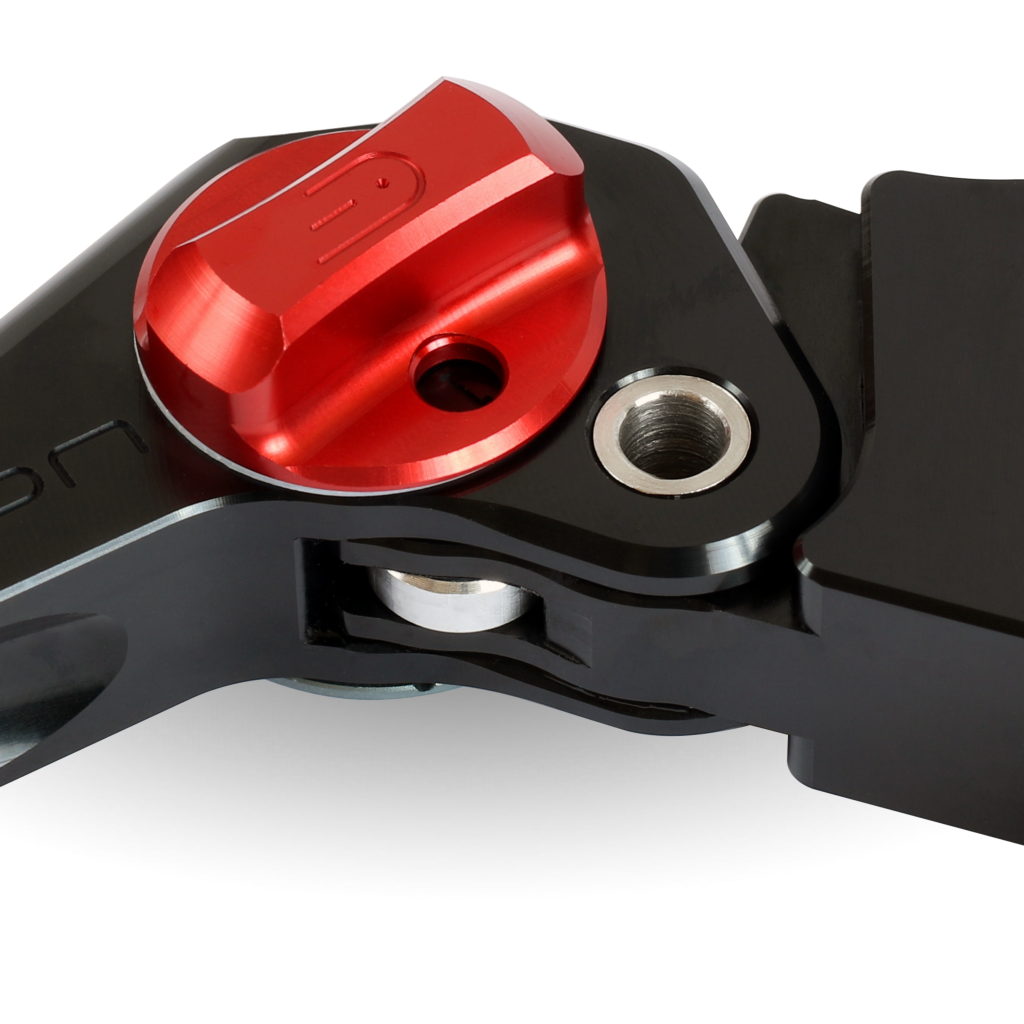

Adjustable motorcycle levers by Oberon Performance. Adjustment is achieved with fingertip control in either adjuster direction. The eight adjustments are either side of position 4 (similar to stock) giving adjustment up to 30mm (1 1/8") of lever travel. Our unique RADIAL CAM® design achieves this extraordinary range with ease. This is mainly due to both the close tolerance design and the high quality roller bearing, around which the cam operates locating each position with a comforting 'click'. Each lever is dispatched fully assembled in the style and colour of your choice ready for use. Oberon Performance supplies a full specification sheet including part numbers with all levers. The cams in the levers have been hard anodised for longevity and reliability, sufficiently lubricated on assembly for smooth adjustment transition.

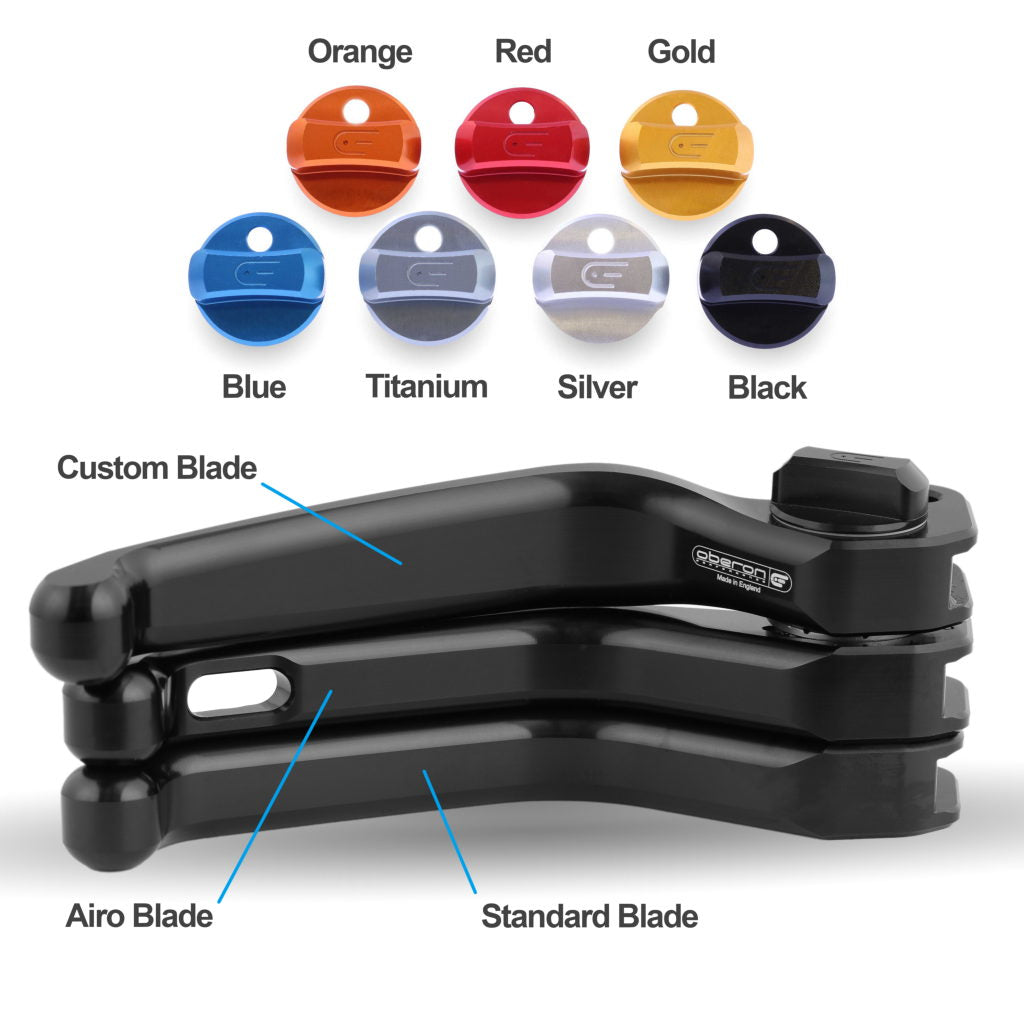

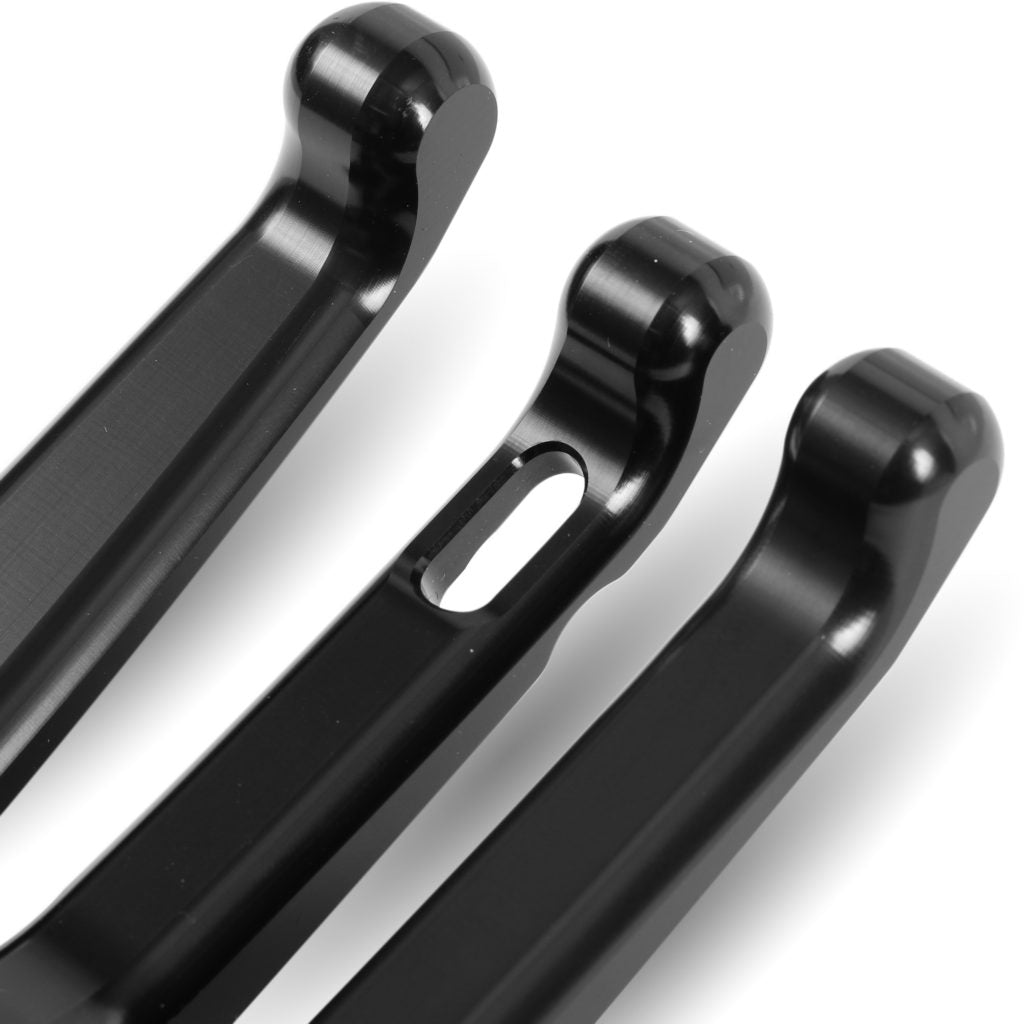

Also available as an alternative choice are the Oberon Performance ergonomic levers with a standard blade if you desire more 'original' looks. Order STD for no slot and AIRO for slot at the end of the lever.

Lever length is 7" from centre of pivot point to end of lever ball, or 17.5cm in metric.

o Oberon RADIAL CAM® System
o 8 selectable position settings
o CNC machined from billet aluminium
o Precision roller bearing for smooth action
o 3mm Ball Bearing click guide
o Short Reach setting for easier operation
o OEM anti-rattle shim accommodated
o Simple to install Clutch and Brake Lever
o Stainless steel fasteners
o Original lever position enhanced
o Integrated adjustment stop
o Manufacturer's warranty
o Lever Blade colours;
Black, Blue, Gold, Red, Silver and Titanium look
o Adjuster Switch colours;
Black, Blue, Gold, Orange, Red, and Silver
o Lever position range up to 30mm

What's in the box B100

Installation Instructions

Dimensions Lever Blades

Lever Blade Travel

THIS BRAKE LEVER WILL FIT THE FOLLOWING MODELS
